CTX Chain Conveyors

ATEX*

Features:

• ATEX Certified machinery is available for applications which handle potentially explosive products
• Fully certified ATEX Zones 20 internally, and Zones 21 and 22 both external and internal

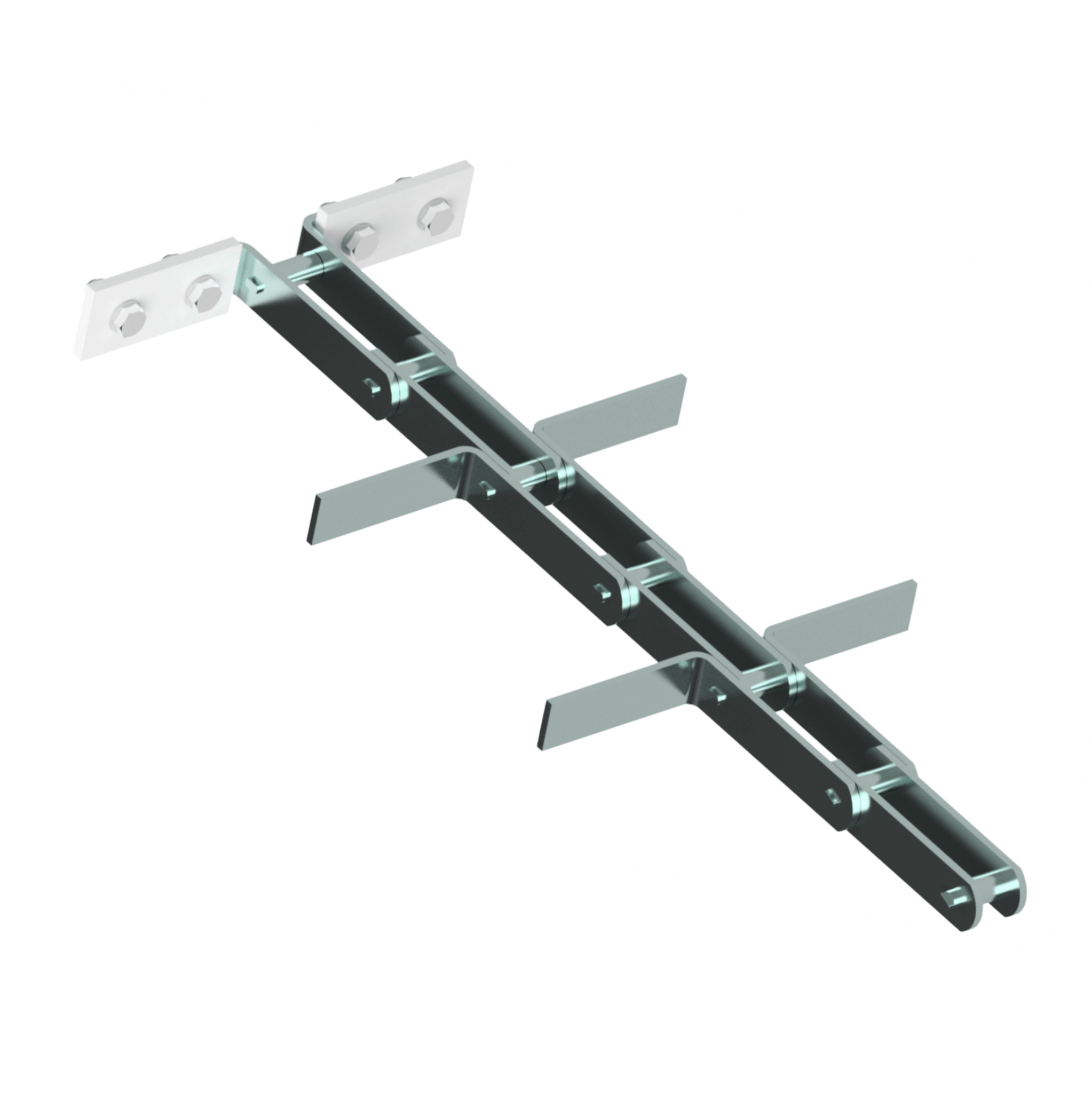

Chain & Flight Assembly

Features:

• European DIN specification steel bushed chain and flight assembly
• Integral pressed flights on every outer link
• Cleaning flights fitted to connecting links at 6m centres to clean the casing and centre the chain

Options:

• Recycle cups incorporated into the connecting link are the perfect solution to reduce product carry over at the drive end of a chain and flight conveyor

Construction and Finish

Features:

• Fabricated from mild steel pre-galvanised sheet and suitable for outdoor installation
• UHMW Polyethylene chain support wear strips (top and bottom)

Drive End & Drive Unit

Features:

• Fitted with 8 tooth hardened steel sprocket
• Shaft mounted, right angled gearmotor
• Speed to suit model and throughput

Options:

• Inspection/sight glasses
• Diaphragm switch or capacitance sensor for choke protection

Intake Options*

Options:

• Mechanical intake
• Trench intake
• Both mechanical and trench intakes provide variable intake capacity by either speed adjustment or a mechanical regulator
• The trench intake is usually mounted flush with the floor

Outlet Slide Valves*

Aimed primarily at the commercial grain store and large farm markets where the requirement is for intensive use during the harvest period and light use throughout the remainder of the year.

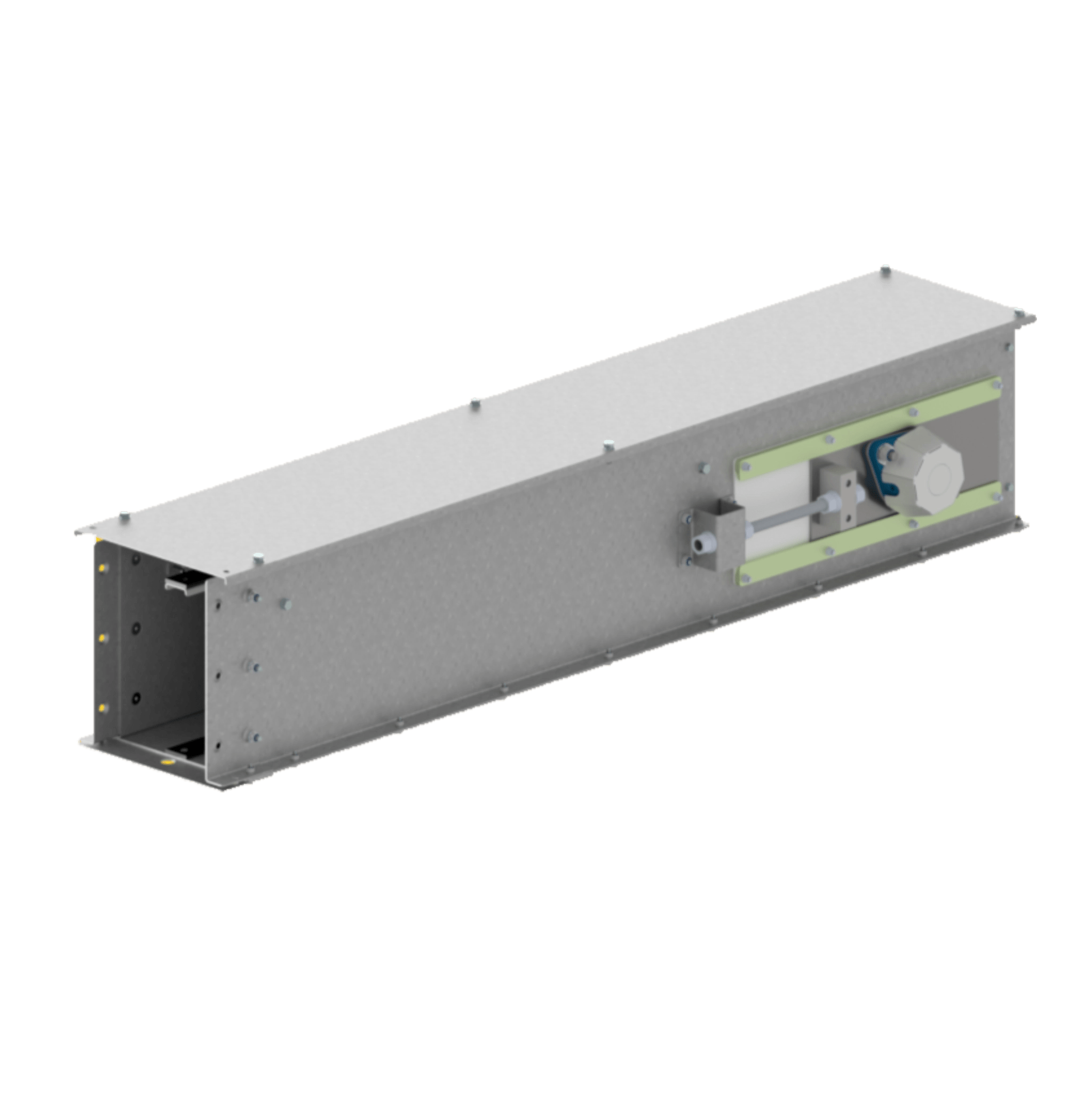

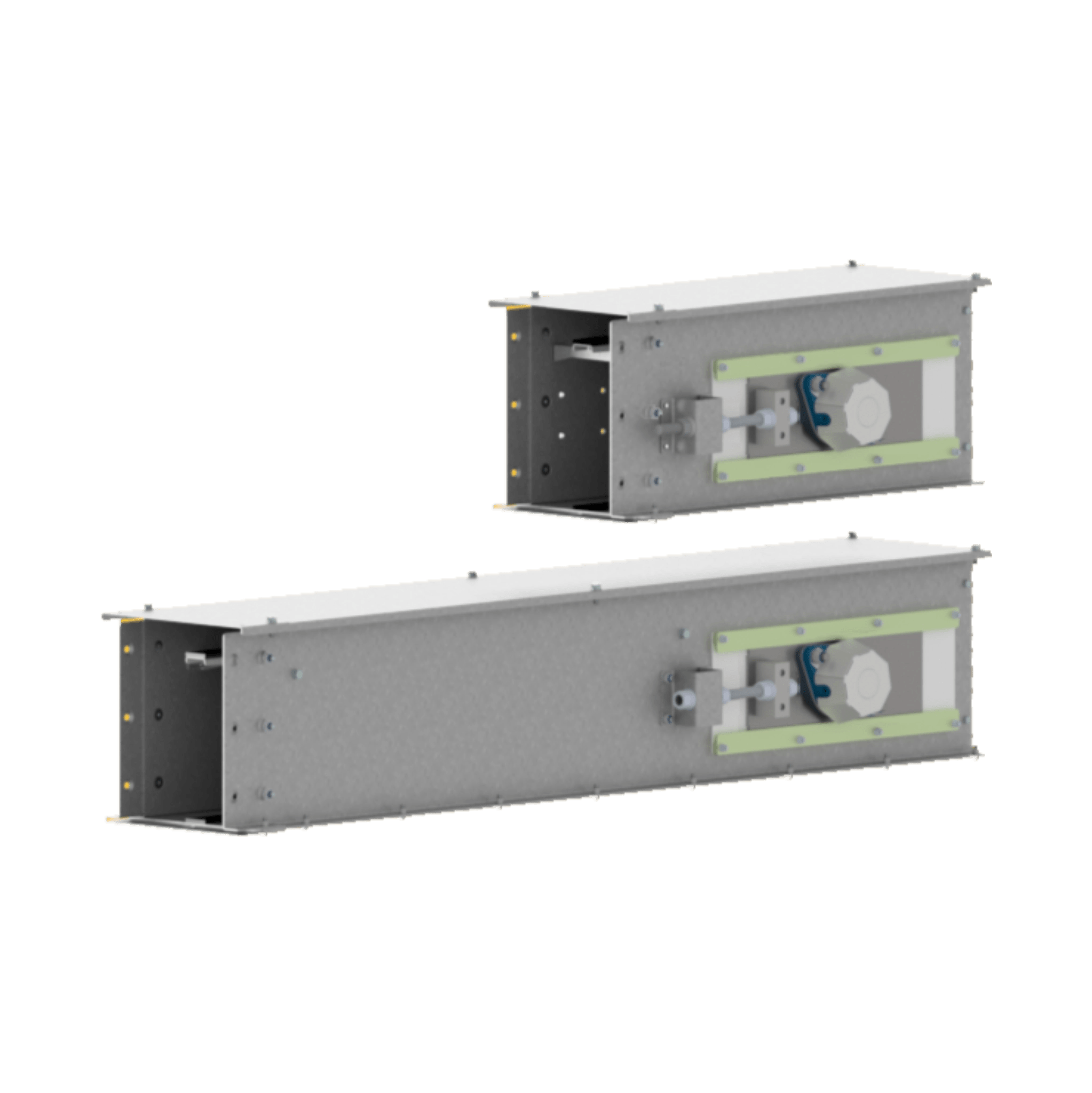

Tail End Section

Features:

• Fitted with 8 tooth steel sprocket
• Manual screw adjusted inboard chain tensioners with seal plates
• External flanged bearings

Options:

• Spring chain tensioners to keep chain in constant tension and reduce maintenance
• Underspeed rotation sensor
• Open outlet for reversing duty (or supplied with slide)
