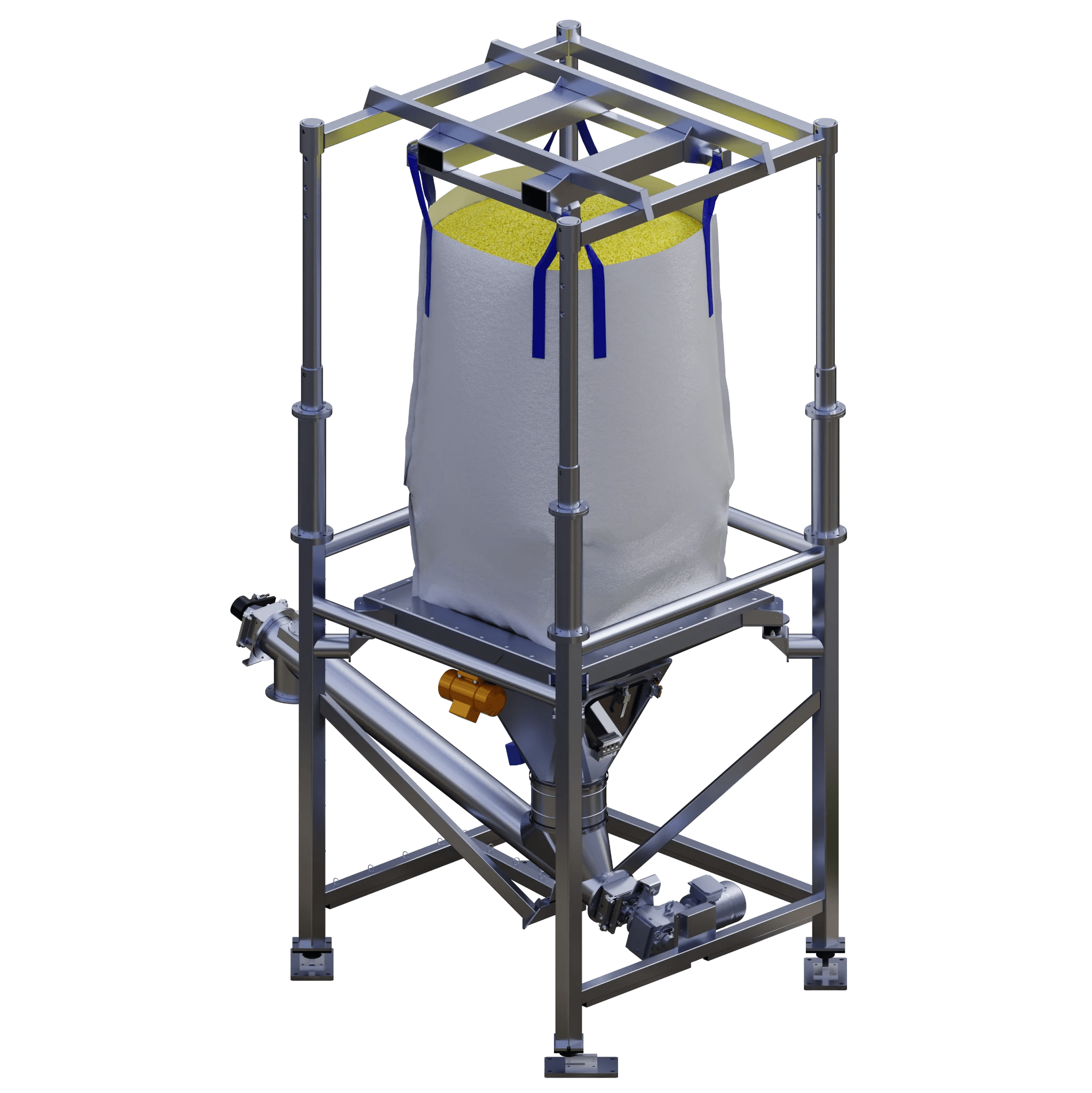

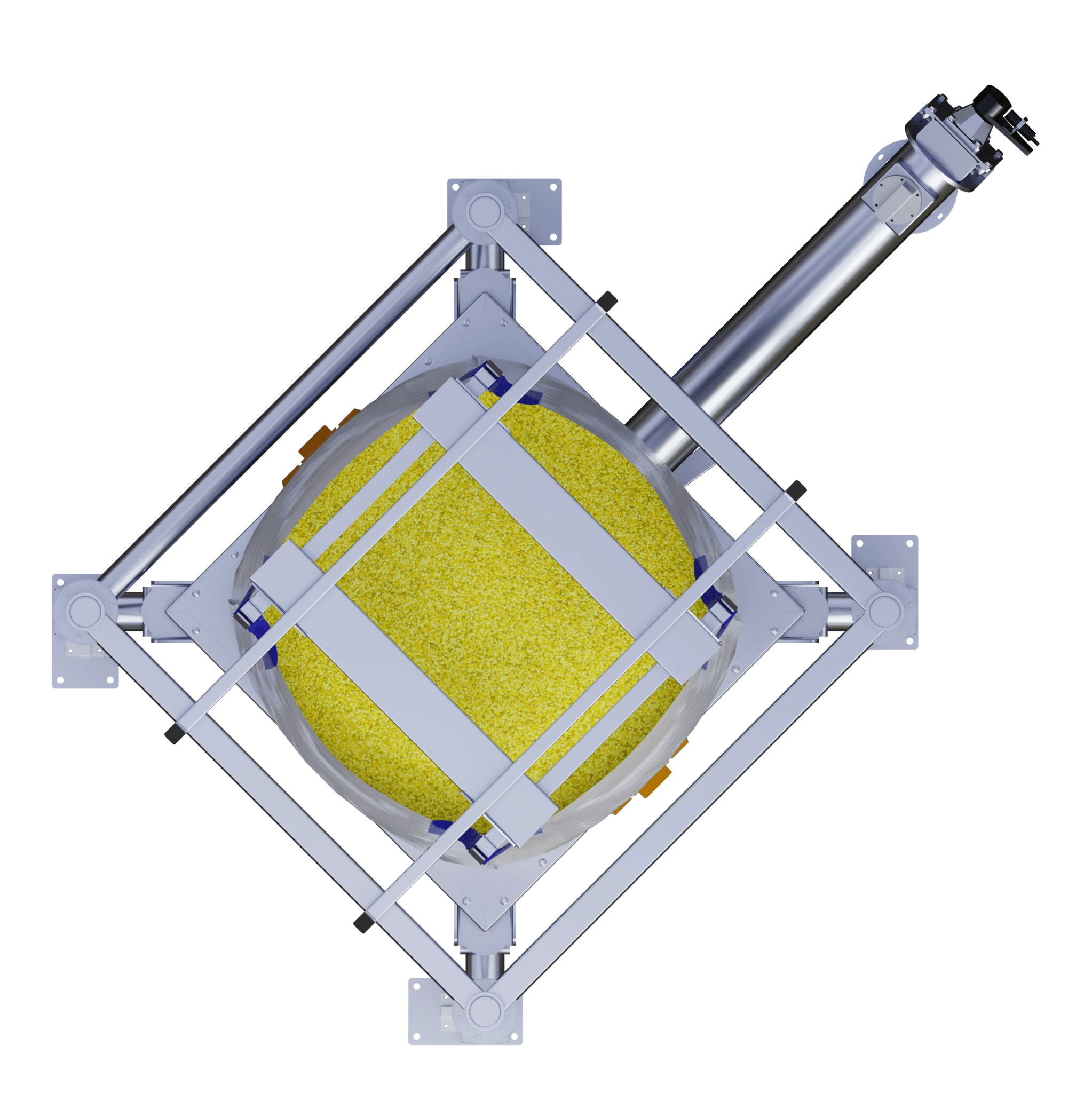

Bulk Bag Dischargers
Durable, robust bulk materials handling solution.
Guttridge Bulk Bag Dischargers are available with a wide choice of integrated discharge conveyors and/or elevators from our extensive range. Integrated weighing systems can be configured with load cells and weigh controllers to provide sophisticated batch control via loss-in-weight or gravimetric techniques. Dust control options are also available.
Bulk Bag Discharging with Versatile Conveying Solutions
The Bulk Bag Discharger can work as a stand-alone piece of equipment, or can be combined with one of our discharge systems. The most popular are the Sieveflo, Multiflo and Easyflo rigid screw elevators, providing the ultimate in rugged, durable design, as well as genuine easy cleandown facilities. Flexible screw conveyors and our Bulkflo large capacity loading hopper are also popular combinations. Our steeply inclined screw elevator options also result in a small footprint – ideal for confined spaces.
Materials Supported
The GTX range of belt & bucket elevators support most free flowing materials a small selection of which are shown below.
Grains & Cereals
Minerals
Glass Cullet
Excipients & Fillers
Biomass
Flours & Powders
Cement
Animal Feeds
Sugar
RDF
Fertiliser
Similar Materials
Multiple discharge options
ATEX Options
Tailored to your requirements
Versatile Material Handling
Ease of maintenance & inspection
Designed for easy installation
Bulk Bag Discharger with Easyflo and Sieveflo
This model is based around our Easyflo and Sieveflo screw elevators, it provides the ultimate in flexibility because the Easyflo/Sieveflo hopper loader can be used separately for discharging 25kg bags, boxes or drums. The Sieveflo option provides a useful integral check sieve to catch foreign objects before they enter the main system. A number of configurations are available, depending on the particular material characteristics and site requirements.
The integrated Easyflo can be easily removed for a thorough clean-down between batches—a job that need take only a few minutes. It can even be totally removed for standalone operation as a manual discharge station for handling 25kg bags, boxes, or drums.
The elevating screw is a rigid screw inclined at 70°, resulting in a robust, space-efficient solution with long life and minimal spares requirements. The Easyflo system provides a unique capability to handle a huge range of materials—from fine, free-flowing powders to materials with very poor flow characteristics.
Bulk Bag Discharger with Multiflo
This model is based around our Multiflo tubular screw conveyor system and is available in a number of configurations – extended hopper, multiple screw, horizontal discharge, agitators etc, depending on the particular material characteristics and site requirements.
Conveying Solutions
Bulk Materials Handling for a diverse range of materials.
Guttridge has over 60 years experience delivering bulk handling solutions. We specialise in both off the shelf modular conveyors and bespoke systems designed to meet the unique needs of each customer. From small business to large commercial enterprises, we’re committed to delivering the best materials handling solutions, every time.
“We were impressed with the company’s willingness to innovate new solutions that would help us to achieve the very highest levels of reliability – a major goal for our site.”
– Mr Adam Elmes, Project Manager at Lafarge, discussing the supply of sand/cement/aggregate handling equipment
Features & Options
Adjustable Frame Height*
Options:
- The Bulk Bag frame can be supplied with adjustable columns to allow easy adjustment to suit varying bag sizes
ATEX*
Features:
- Fully certified ATEX Zone 22 only
ATEX Certified machinery is available for applications which handle potentially explosive products
Bag Closer*
Features:
- Removal of part emptied bags is possible with an iris valve or similar device to allow the spout to be tied off and the bag removed
Options:
- Pneumatic bag closer to help assist closing of partially emptied bags (pictured)
Bag Handling
Features:
- The standard configuration consists of a cruciform frame which supports the bag
Options:

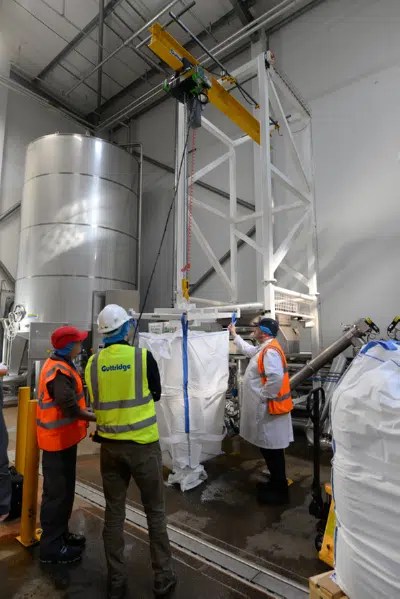

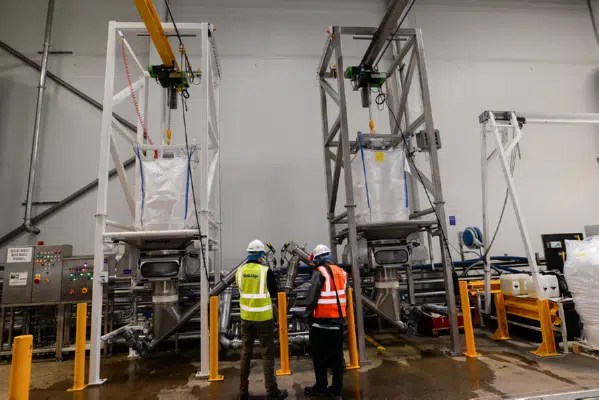

- A built in hoist and overhead gantry eases handling and allows a wider variety of bags to be accommodated
Bag Massage and Vibratory Systems*
Features:
- Simple pushers which agitate the material
Options:
- Hinged plate lifting systems Operation can be a programmed automatic pneumatic sequence or entirely manual
- Corner mounted lifting systems
Bag/Liner Tensioning*
Features:
- Spring loaded column supports to the suspension frame are available to gradually lift the bag during the latter stages of discharge
- Tensioning results in improved emptying with minimal operator intervention
Cabinet Enclosure
Options:
- A lockable access door Access gauntlet gloves
Check Sieve*
Options:
- Trap foreign objects with a proprietary Vibratory Sieve
- With an integrated Sieveflo or Vibratory Sieve providing check sieve facilities, you can be sure no foreign or oversized particles will find their way into your finished product
Construction
Features:
- Robust, heavy duty frame
Options:
- Painted, galvanised or stainless steel finish options are all available
- Contact parts can be stainless steel dependent upon customer requirements
Discharge Machinery
Features:
- The modular design of the Bulk Bag allows various different discharge machinery to be attached
Options:
- Easyflo mobile screw elevator with integral sack tip facility
- Multiflo Conveyor
- Bulkflo large capacity mobile hopper with steep angle screw elevator
- Sieveflo with integral vibratory sieve screening section
- Flexible Screw Conveyor
Docking Systems*
Features:
- The standard docking system is the basic manual clamp
Options:
- Semi-automated pneumatic clamp systems (pictured)
- The propriety Ezidock Containment System ™
- Other special purpose docking systems to suit customer requirements
Support Pan & Enclosure*
Features:
- The support pan holds the bulk bag in place and provides safe operation
Options:
- A cabinet enclosure with access door can be integrated for improved sealing
- A spout docking system can also be enclosed in the cabinet if double sealing is required

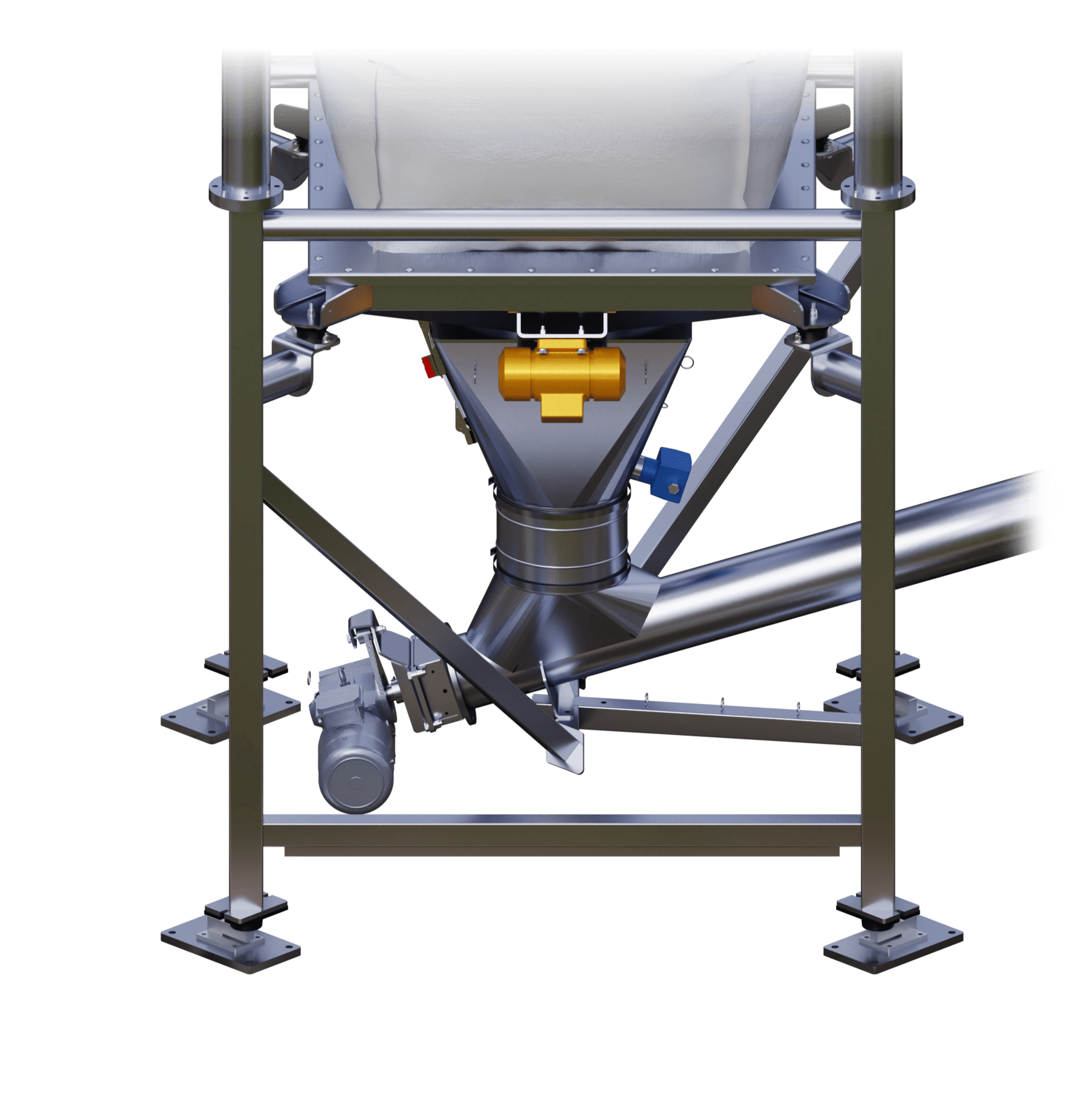

- The bag support can be fitted with an optional vibrator to assist material flow (pictured)
Weighing Capability*
Options:
- Load cells can be integrated into the frame to provide loss-in-weight measurement
